TCOB Series Cine-Grade Steel Light Stand with High-Grade Construction Dual Use and Detachable Legs

  • TCOB Series Cine-Grade Steel Light Stand with High-Grade Construction Dual Use and Detachable Legs
  • TCOB Series Cine-Grade Steel Light Stand with High-Grade Construction Dual Use and Detachable Legs
Lugar de origem China
Marca HAFE
Certificação /
Número do modelo Série TCOB
Quantidade de ordem mínima 1 unidade
Preço Negociável
Detalhes da embalagem Caixa
Tempo de entrega 7 a 10 dias (depende de unidades específicas)
Termos de pagamento T/T, PayPal, Western Union
Habilidade da fonte 3000 unidades/ano
Detalhes do produto
Faixa de altura máxima 2,2m a 4,07m (varia de acordo com o modelo) Faixa de altura 785 mm a 2830 mm ajustável
Altura mínima 245 mm / 9,6" Altura ajustável Estrutura telescópica multiseção
Faixa de ajuste 20mm a 320mm Ajustável Altura dobrada 970 mm/38" a 1910 mm/75,2"
Compatibilidade do thread 1/4”-20 e 3/8”-16 Recursos especiais Cabeça esférica / sapata / clipe giratório
Tipo básico Tripé Seções do pé 3
Peso líquido 180,4 kg Ajuste de altura Projeto de riser telescópico
Diâmetro de propagação 300 milímetros Recurso principal Ajuste de altura sem esforço
tipo Dobrável Material Construção em aço de alta qualidade
Capacidade de carga Até 20 kg (dependendo do modelo) Altura máxima 2810 mm / 116"
Peso 4,73 kg/10,5 libras Carga útil 18 kg/39,8 libras
Destacar

TCOB cine-grade steel light stand

,

dual use detachable legs light stand

,

high-grade construction tripod light stand
Deixe um recado
Descrição de produto
TCOB Series | Cine-Grade Steel Light Stands
Uncompromising Stability. From Set Floor to Studio Grid.
Where precision lighting meets absolute reliability. The HAFE TCOB Series delivers a purpose-built range of steel stands engineered to anchor your most critical fixtures—from low-profile floor packages to overhead combos. No plastic gimmicks. No wobble. Just brute strength, clean engineering, and the load capacity to lock down cinema cameras and heavy diffusers with total peace of mind.
Technical Specifications
Model Min Height Max Height Folded Length Weight Sections Tube Ø Leg Profile Payload Footprint

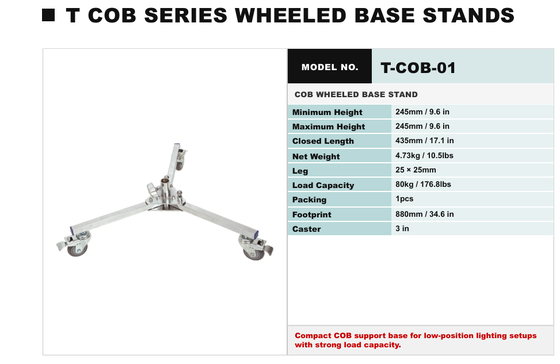

TCOB-01 245 mm / 9.6" 245 mm / 9.6" 435 mm / 17.1" 4.73 kg / 10.5 lbs -- -- 25*25 mm 80 kg / 176.8 lbs 880 mm / 34.6"
TCOB-02 280 mm 280 mm 630 mm 7.86 kg -- -- 30*30, 25*25 mm 20 kg 1220-1920 mm
TCOB-20" 820 mm / 32.3" 1570 mm / 61.8" 610 mm / 24" 7.0 kg / 15.5 lbs 3 25, 30, 35 mm 25*25 mm 18 kg / 39.8 lbs 880 mm / 34.6"
TCOB-30" 1075 mm / 42" 2195 mm / 86" 900 mm / 35" 6.74 kg / 14.96 lbs 3 25, 30, 35 mm 25*25 mm 18 kg / 39.8 lbs 880 mm / 34.6"

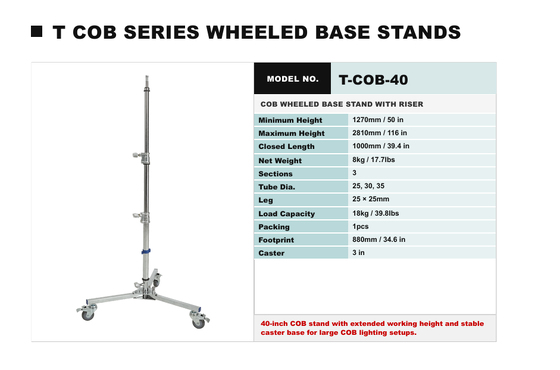

TCOB-40" 1270 mm / 50" 2810 mm / 116" 1000 mm / 39.4" 8 kg / 17.7 lbs 3 25, 30, 35 mm 25*25 mm 18 kg / 39.8 lbs 880 mm / 34.6"
HAFE TCOB Series Steel Light Stands product image
The HAFE Solution
Three distinct architectures. One unified vision. Whether you're building a dolly-hugging diffusion setup or a towering backlight array, there's a TCOB stand built precisely for the task. We've eliminated the guesswork: the baby stands (01/02) act as unshakeable low-booms and overhead rigging anchors, while our 20", 30", and 40" risers form the backbone of any tungsten, HMI, or heavy LED placement. No adapter clutter. No fragile alloy compromises. Just a straightforward, steel-driven toolkit that bridges the gap between grip and lighting departments.
Why Steel Is a Creative Choice
  • Vibration-Proof Locking. The sheer mass of the steel tubing dampens resonance instantly. Frame your shot while talent moves across a raised platform—zero image shift.
  • Mono-Block Footprint. A consistent 880 mm base diameter across telescopic models means predictable spacing in tight grids and on crowded stages.
  • Effortless Deployment. Oversized, glove-friendly locking knobs collapse the 3-section risers fast. From cart to set-ready in seconds.
  • Tri-Diameter Tube Sizing. Graduated diameters (25, 30, 35 mm) on TCOB-20", 30", and 40" maximize top-stage stability without adding bulk.
  • Payload You Can Trust. A rated 18 kg / 39.8 lbs on telescopic stands—and a staggering 80 kg / 176.8 lbs on the TCOB-01 baby plate—means you can safely fly a loaded 4*4 frame, a fully dressed Skypanel, or a Combo head with glass.
Where It Fits Into Your Workflow
Scenario Recommended Model
Rolling low-angle key light beneath a camera dolly TCOB-01 (80 kg static load)
Heavy overhead butterfly frame rigging TCOB-02 (1220-1920 mm adjustable footprint)
Standard interview key / backlight placement TCOB-20" (820-1570 mm)
High-power HMI or spotlight throw from set wings TCOB-30" (1075-2195 mm)
Studio catwalk punch, elevated diffusion, or towering edge light TCOB-40" (1270-2810 mm)
Structure Comparison: Steel vs. Alloy
Attribute TCOB Steel Stands Typical Aluminum Stands
Center of gravity feel Grounded, low-resonance Light top, prone to vibration
Long-term joint wear Minimal; steel resists galling Noticeable slop after repeated use
Wind/external buffeting response Dampens instantly Transfers energy to light fixture
Carrying weight penalty Moderate, planned-in Lighter, but often requires additional sandbagging
Takeaway: If your light is expensive, the stand underneath it should be heavier. Mass isn't a burden—it's insurance.
FAQ

Q: What is the actual working load I should assign?
A: For any stand in a studio environment, apply a standard 5:1 safety factor. Our listed 18 kg capacity already reflects a conservative rating; however, for personnel safety, always sandbag the base and never exceed one-fifth of the stated max when flying overhead equipment.

Q: Why does the TCOB-01 have a minimum and maximum height that are identical?
A: The TCOB-01 is a fixed-height, ultra-low baby stand. Its design eliminates riser columns entirely to provide a single 245 mm mounting point capable of holding 80 kg statically. Ideal for direct camera bed mounts or dead-bottoming a heavy diffusion frame.

Q: Are the 30*30 mm legs and 25*25 mm tubes compatible with standard grip heads?
A: Absolutely. The TCOB-02 combo leg set and all telescopic models use industry-standard 25 mm (1") junior receivers and spigots. Your existing grip heads and clamps will mount without reducers.

Q: Do the stands include leveling legs?
A: The TCOB-01, 20", 30", and 40" ship with fixed profile steel legs, delivering maximum rigidity. If you require self-leveling for uneven terrain, a low-profile leveling head can be mounted on the top stage without compromising payload.

Why Filmmakers Choose HAFE Over Commodity Stands
We build rigging equipment that doesn't interrupt the shot. Every TCOB stand is welded, inspected, and load-tested in-house. The finish is a multi-stage powder coat that survives cable friction, truck pack-ins, and sudden rain on location. When you reach for a HAFE stand, you're not checking its age or praying the collar holds—you're focusing on the frame.
  • No hidden plastic bushings where strength matters.
  • Steel leg profiles that lock with a reassuring, deliberate clamp action.
  • A design language built for rental houses and touring crews—stackable, strip-down simple, and field-serviceable.
Choose the stand that works as hard as your lighting package. Choose HAFE.
